# Information Tabs
## Learn what all the Tabs within watchdog are for.

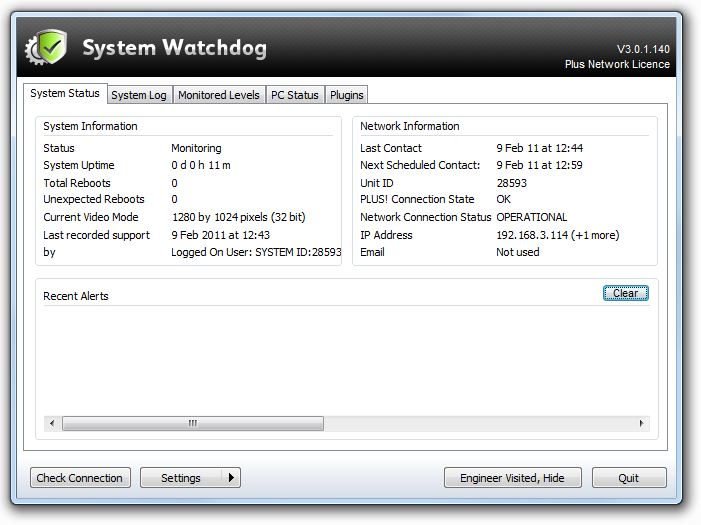

#### **System Status**
This tab shows you the current System and Network information. Recent Alerts lists important events that have been triggered.
**See also** - Triggers and Appendix 1 – About Alerts.

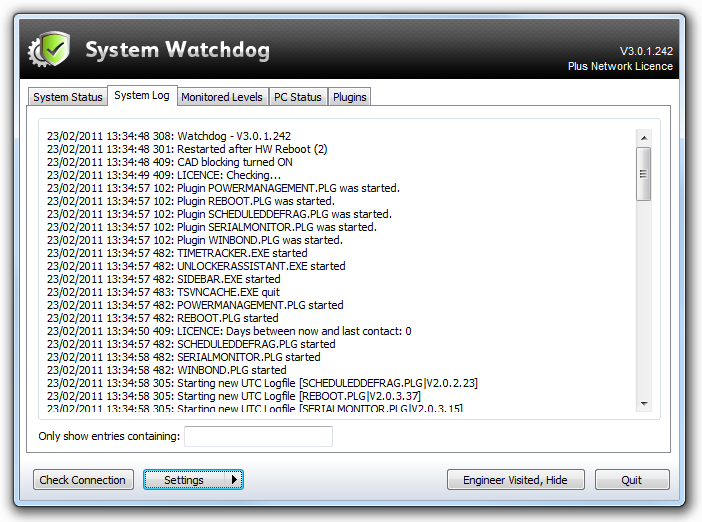

#### **System Log**
This tab shows you the entries in the current System Watchdog log file. Each entry has the date/time of the logged event and a message code & description.
- Press View Important Codes to see a list of codes that are reported to the Plus! Network. These can be changed in Site Manager.
- Press Send Logs to upload outstanding logs to the Plus! Network.
- Type text into the box to filter the entries shown. Only entries that contain this text will be shown e.g. you could enter “licence” to see only entries pertaining to licensing, a specific code or even a time such as “13:”.
All items are shown when this box is empty.

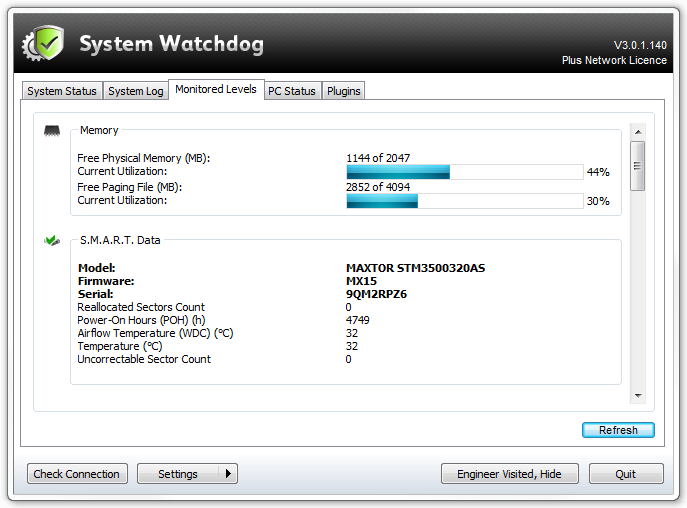

#### **Monitored Levels**
****
This tab shows basic current memory/connection information plus S.M.A.R.T. Data, Hard drive and Printer information if they are set to be monitored in Triggers.
Press the **Refresh** button to keep the information up to date.

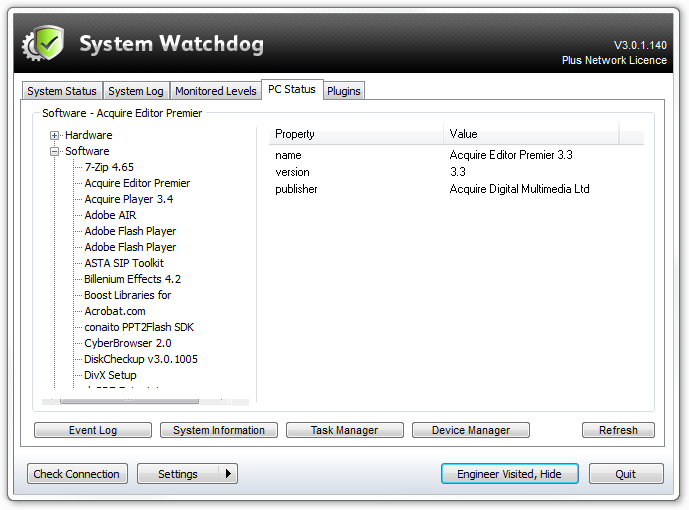

#### **PC Status**
****
Select items in the left hand menu to show information about specific hardware, software and services currently installed on the PC.
Use the respective buttons to open the standard Windows interface **“System Information”**, *“Task Manager”* and **“Device Manager”**.
Press **“Refresh”** to get the latest information.

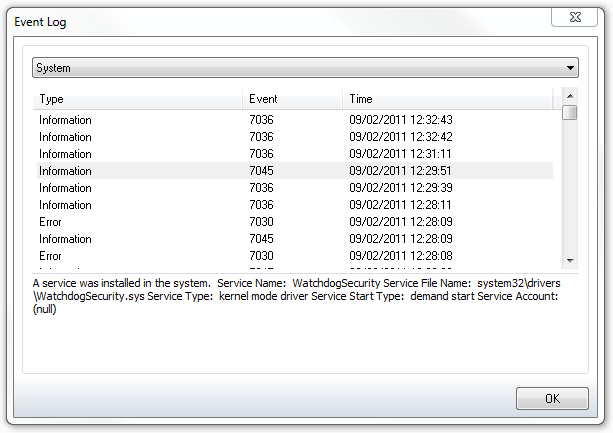

The **“Event Log”** button allows you to view the Windows Event Logs.
Select the type of event log from the drop-down list and highlight the list item to see its description in the area below.

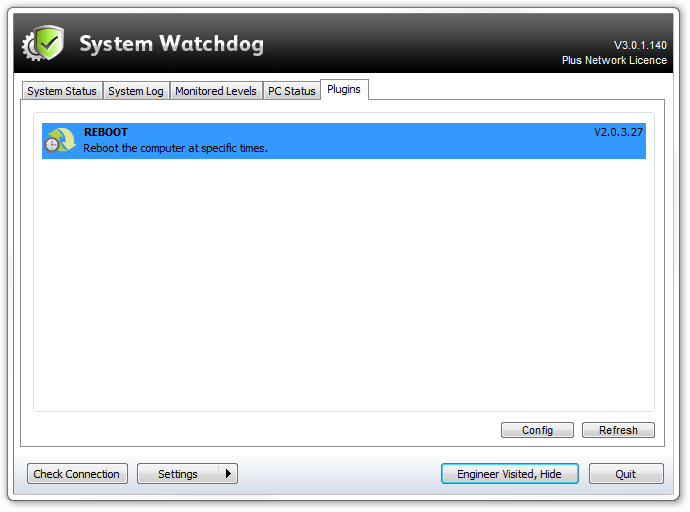

The tab shows a list of the plugins that are installed. Double-click an item or select it and press the **“Config”** button to open that plugin’s configuration settings. Press the **“Refresh”** button to update the list.
